Product Show>>Magnetic Star ter & Thermal Relay :HR2-N Thermal relay>> HUAJIA Electrical (Group) Co., Ltd.
Product Show
Magnetic Star ter & Thermal Relay:HR2-N Thermal relay [Hits:506]

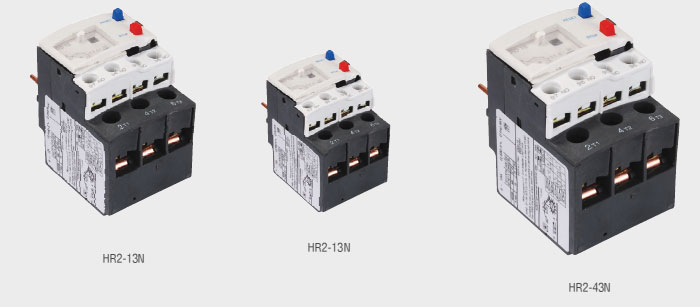

HR2-N Thermal relay

Application

This series of therrmal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature     compensation & can be pluged in HC1-D series AC contactor. it is the most advanced thermal relay in the  nineties in the world.

Specificarions

Type
Number Setting Range(A) Contavtor Insert
HR2-13N
HR2-33N
HR2-43N
01
0.10~0.16
HC1-09N~38N
02
0.16~0.25
HC1-09N~38N
03
0.25~0.40
HC1-09N~38N
04
0.40~0.63
HC1-09N~38N
05
0.63~1
HC1-09N~38N
06
1~1.7
HC1-09N~38N
07
1.6~2.5
HC1-09N~38N
08
2.5~4
HC1-09N~38N
10
4~6
HC1-09N~38N
12
5.5~8
HC1-09N~38N
14
7~10
HC1-09N~38N
16
9~13
HC1-12N~38N
21
12~18
HC1-18N~38N
22
16~24
HC1-25N~38N
3353
23~32
HC1-40N~95N
3355
30~40
HC1-40N~95N
3357
37~50

HC1-50N~95N
3359
48~65
HC1-50N~95N
3361
55~70
HC1-65N~95N
3363
63~80
HC1-80N~95N
3365
80~93
HC1-95N
4365
83~104
HC1-95N
4367
95~120
HC1-95N
4369
110~140
HC1-95N

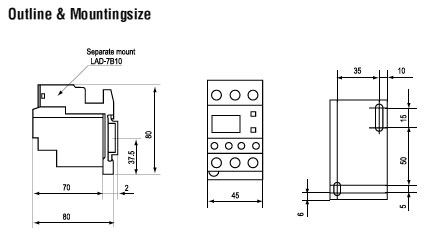

Outline & Mountingsize
