Distribution Box & Instruments:TSW Series Distribution Box Out Wall [Hits:447]
TSW Series Distribution Box Out Wall

Application

The distribution box is suitable for mounting of modular electric installation devices with maximum current up to 63A, the product, available with neutral and earth terminal block. Din rail function label is widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.

Standard
BS EN 60439-3

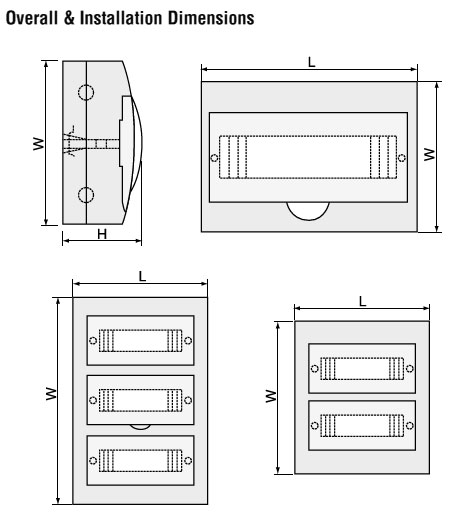

Model Dimension
L(mm) W(mm) H(mm)
TSW-2WAYS
90
140
60

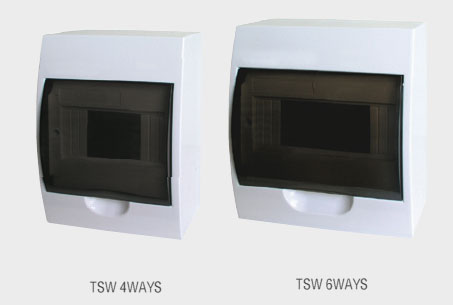

TSW-4WAYS
112
210
100
TSW-6WAYS
148
210
100

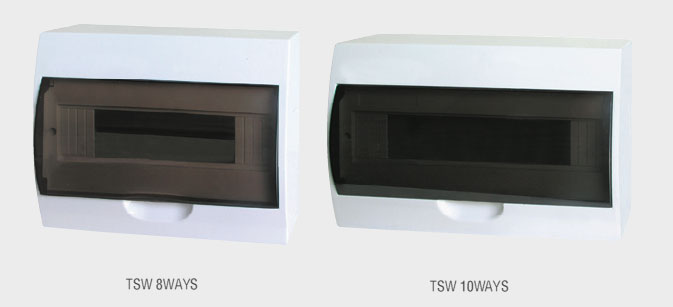

TSW-8WAYS
184
210
100
TSW-10WAYS
222
210
100
TSW-12WAYS
256
210
100
TSW-15WAYS
312
210
100
TSW-18WAYS
364
222
100
TSW-24WAYS
270
325
100
TSW-36WAYS
305
473
100
TSW-45WAYS
473
326
100
